Cables for the industrial KIF-V (P) interface
KIF-V (P) Nx2x0.78
Application
Cables are designed for high-speed data transfer in acc. ISO / IEC 8482, EIA RS-485 (TIA / EIA-485-A). Used for stationary installation inside buildings, stations, structures, equipment. Allowed for inner and outer installation.

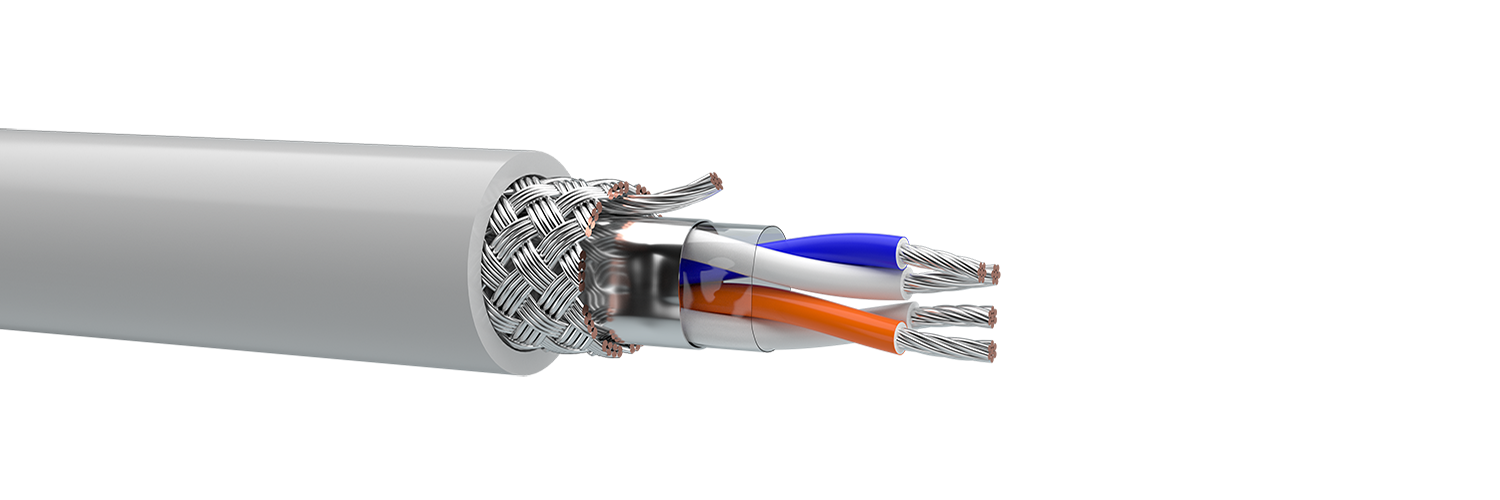

Cable design
1. Conductor: copper wire 0.78 mm
2. Insulation: FHDPE
3. Shield Material: aluminum foil + tinned copper braid
4. Copper tinned contact wire
5. Sheath: KIF-V – PVC; KIF-P - UV-stabilized PE
Installation and operation conditions
Temp Rating KIF-V:
- Installation Temp Rating: -10 °C ... +50 °C;
- Operating Temp Range: -20 °C ... +60 °C.
Temp Rating KIF-P:
- Installation Temp Rating: -10 °C ... +50 °C;
- Operating Temp Range: -40 °C ... +70 °C.
Min Bend Radius: ≥ 10
Minor Axis: ≤ 120 N.
Standards
ISO IEC 8482, EIA RS-485 (ТIA/EIA-485-A)
Main technical and mechanical characteristics
| Electrical parameter at 20 ° C | Frequency, kHz | Value |
| Test voltage for 1 min, kV - between all cores and the screen: |
D.C. 0,05 |
0,7 0,5 1,4 1,0 |
| Conductor electrical resistance, Ohm / km, no more tha | D.C. | 59 |
| Electrical insulation resistance,per 1 km, t. 20 C, MΩ, not less | D.C. | 150 |
| Conductor pair electric capacitance, pF / m | from 0,8 to 1,0 | 40±4 |
| Average wave impedance, Ohm | 1000 | 120 ± 12 |
| Аttenuation, no more, dB / 100m | 1000 | 1,65 |
Nomenclature and mass-dimensional characteristics
| Cable brand | Outside diameter, mm | Weight, kg/km |
| KIF-V 1х2х0,78 | 7,4 | 65 |
| KIF-V 1,5х2х0,78 | 7,4 | 66 |
| KIF-V 2х2х0,78 | 8,7 | 78 |
| KIF-V 3х2х0,78 | 9,4 | 93 |
| KIF-V 4х2х0,78 | 9,4 | 103 |
| KIF-V 5х2х0,78 | 10,3 | 117 |
| KIF-V 6х2х0,78 | 11,2 | 132 |
