Power cables with XLPE insulation up to 1 kV
Aluminium conductor XLPE insulated & PVC sheathed power cable APvVG 0.6/1 kV
Application
Single or multicore power cable rated voltage 1kV for installations in premises, indoor, in dry ducts and tunnels.

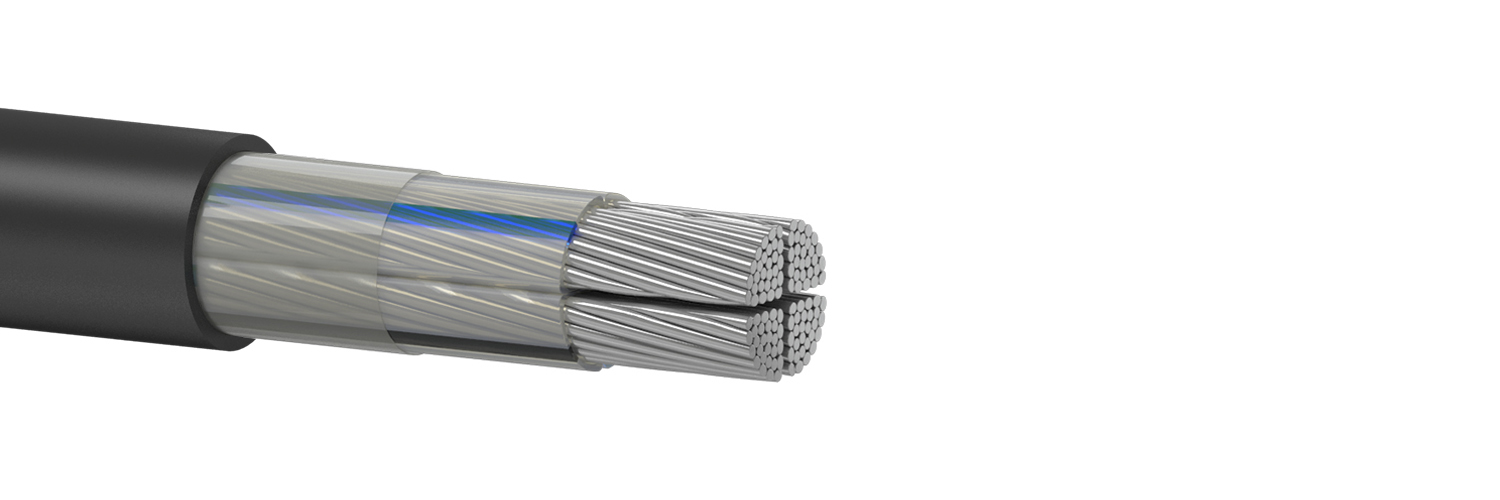

Construction
1. Conductor: aluminium round solid or round stranded or sector shape acc. to EN 60228 class 1 or 2;
2. Insulation: XLPE;
3. Core wrapping: polymer tape;
4. Outer sheath: PVC.
Design versions
APvVGng - cables with flame retardant performance acc. to IEC 60332-3;
APvVGng-LS - cables with low smoke/gas emission flame retardant performance acc. to IEC 60332-3;
APvPG – cables with UV-stabilized polyethylene outer sheath;
APvPGng-HF - cables with halogen-free & flame retardant polymer compound outer sheath.
Requirements compliance
DSTU IEC 60502-1;
ТУ У 31.3-05758730-024:2002;
DSTU EN 60228;
Flame Retardant per: DSTU IEC 60332-1-2, DSTU 4809.
Technical-operational characteristics
| Ambient temperature, °С | from -50°С to +50°С |
| Installation of the cables without prior heating should be carried out temp., not less than, °С | -15°С |
| Continuous permissible conductor temperature, °С | +90°С |
| Minimum bending radius by laying: | |
| - single core cable | 10 cable diameters |
| - multi core cable | 7,5 cable diameters |
